TD-3500 X-Ray Diffractometer
1. Detector type: Array detector or SDD detector;
2. PLC automatic control calculus, Integration mode conversion, PLC automatically performs PHA, dead time correction
3.Sample measurement type: powder sample, liquid samples, melt-state samples, viscous samples, loose powders, bulk solid samples
4.Available with a variety of diffractometer accessories
5.Maximum output powder: 3kW
- Tongda
- Liaoning, China
- 1—2 months
- 100 units per year
- Information

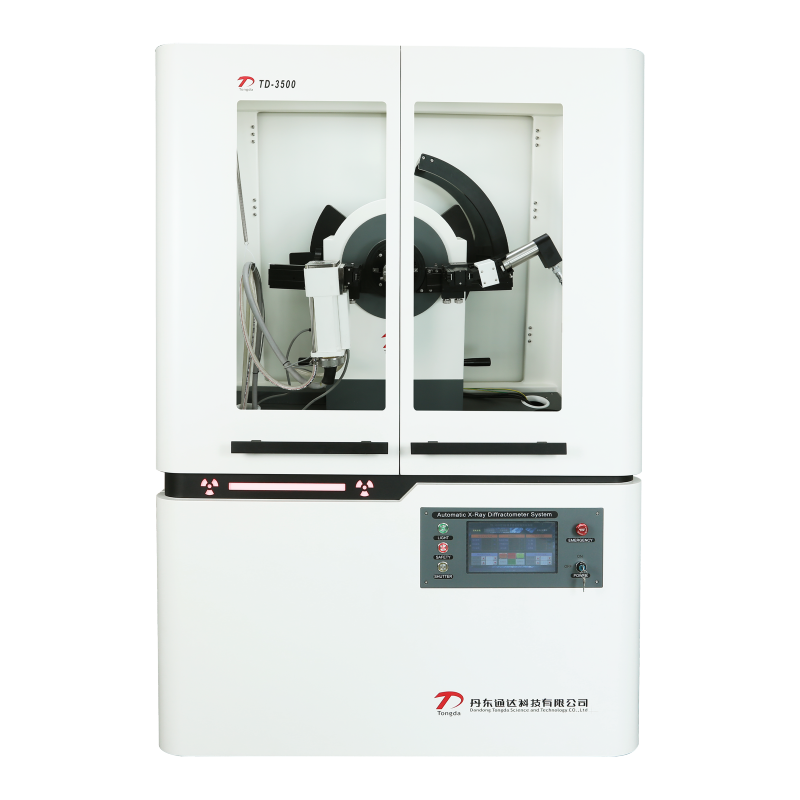

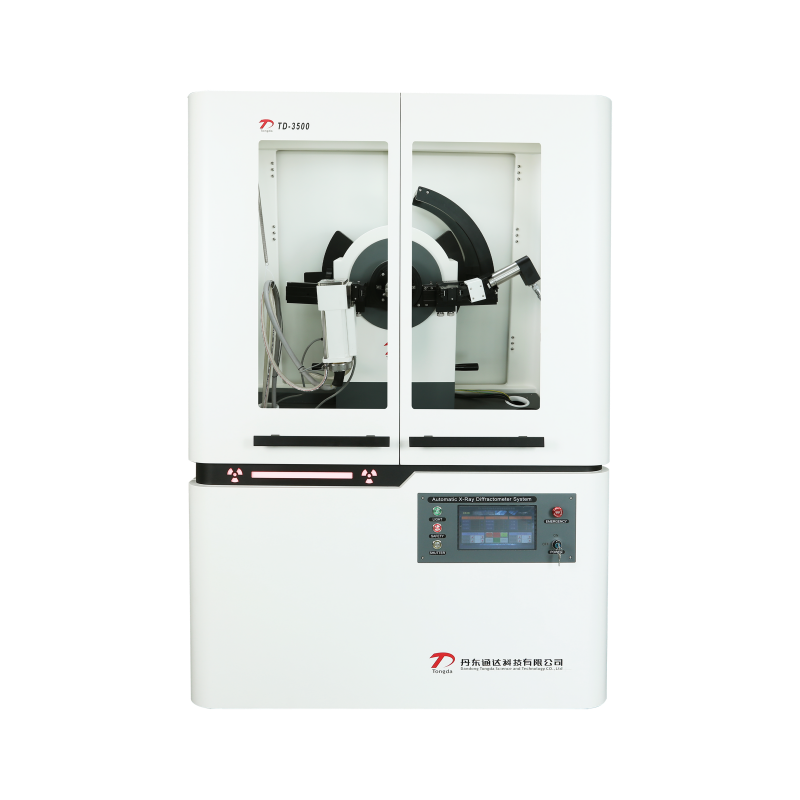

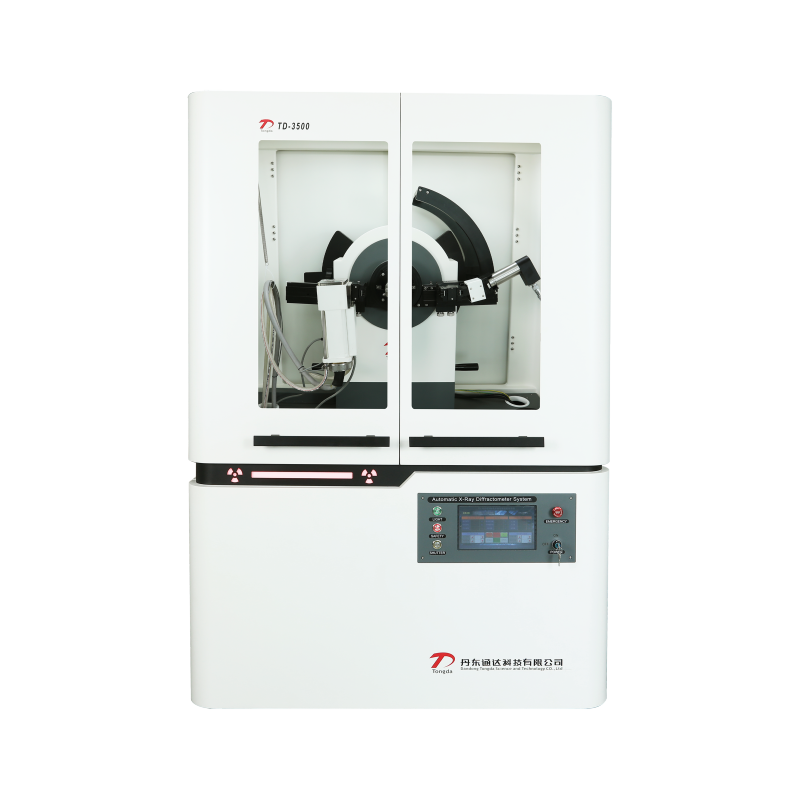

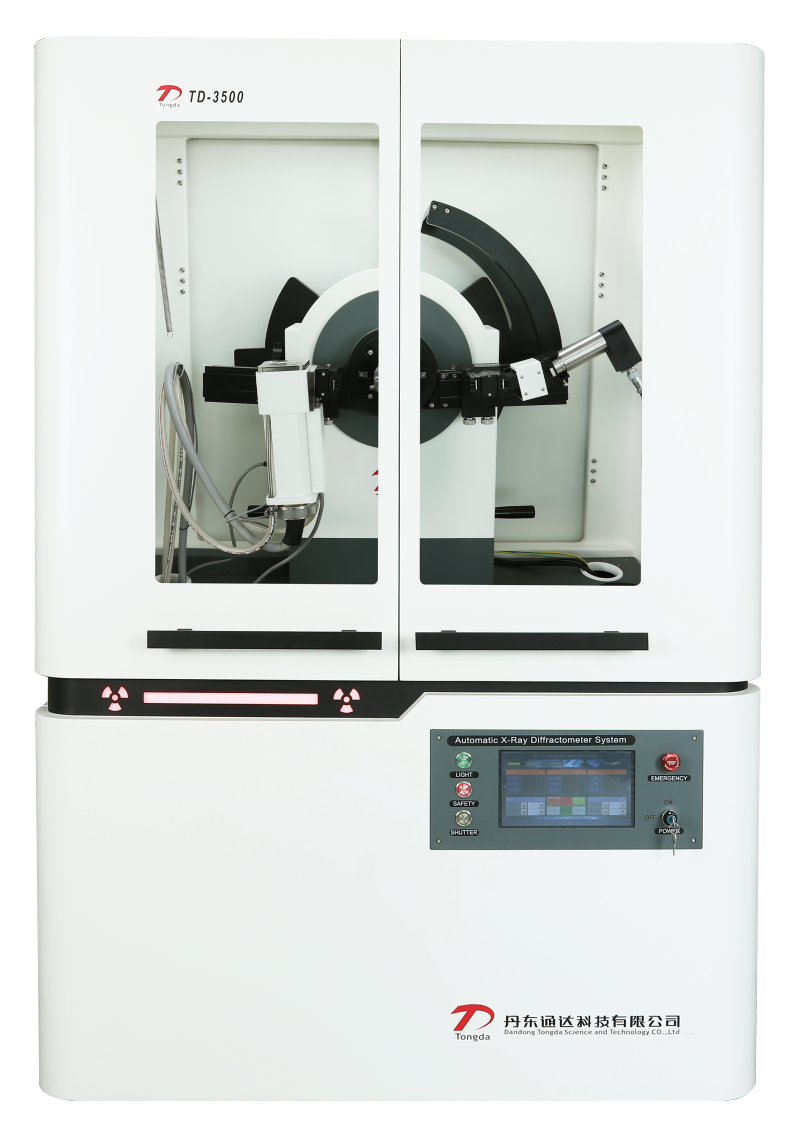

TD-3500 X-ray diffractometer
X-ray diffractometer is mainly used for phase characterization, quantitative analysis, crystal structure analysis, material structure analysis, crystal orientation analysis of powder, block or thin film samples. Measurement of macroscopic or microscopic stress, measurement grain size, measurement of crystallinity, and the like. The TD-3500 Powder X-ray diffractometer produced by Dandong Tongda Technology Co., Ltd. is controlled by imported Siemens PLC. The TD-3500 Powder X-ray diffractometer is characterized by high precision, high accuracy, good stability, long service life, easy upgrade, simple operation and intelligence. Flexible to adopt to a variety of industry test analysis and research.
TD series diffractometer embody the essence of the research and development of Tongda Technology over the years, and evolve with the needs of the times.
X-ray diffractometer is mainly used for phase characterization, quantitative analysis, crystal structure analysis, material structure analysis, crystal orientation analysis of powder, block or thin film samples. Measurement of macroscopic stress or microscopic stress, measurement of grain size, measurement of crystallinity, and the like. The TD-3500 Powder X-ray diffractometer produced by Dandong Tongda Technology Co., Ltd. is controlled by imported Siemens PLC. The TD-3500 Powder X-ray diffractometer is characterized by high precision, high accuracy, good stability, long service life, easy upgrade, simple operation and intelligence. Flexible to adopt to a variety of industry test analysis and research.
Powder X-ray Diffractometer
X-ray generator (high frequency and high voltage solid state generator and power frequency generator are optional)；
Adopt PLC control technology with independent intellectual property rights and national invention patent; high degree of automation, very low failure rate, strong anti-interference ability, good system stability, can extend the service life of the whole machine. PLC and computer interface automatically control the switch of shutter, automatically control the tube pressure, tube flow up and down, with automatic training X-ray tube function. Touch screen is used for real-time online monitoring to display instrument status.
Advanced record control unit with PLC control circuit；
The advanced PLC control technology and real color touch screen are adopted to realize human-computer interaction, and the hardware of the system is modularized, which greatly increases the anti-interference ability of the system and makes the system more stable. The system can run stably without fault for a long time because of the large scale, high precision and high automation of imported Siemens PLC control circuit.
This system has the following advantages compared with the single chip circuit used by other companies
Simple line control, easy to debug and install；
Because of the modular design, the maintenance of the system is very simple, users can repair and debug without the presence of the manufacturer’s technicians;
The use of advanced true color touch screen to achieve human-computer interaction, complete protection functions, very convenient operation, three-dimensional animation design is more user-friendly, more intuitive, convenient for the operator to use and judge fault information. Greatly improve the counting stability of the system, so as to improve overall stability of the machine；
Due to PLC expansion ability is strong, can easily to expand a variety of functional accessories, without adding any additional hardware line.
Detector of powder x-ray diffractometer
Proportional detector（PC）or Scintillation detector（SC）。
High precision goniometer
TD series goniometer are driven by imported high-precision bearings. The motion control is accomplished by a set of high precision fully closed loop vector driven servo system. The smart driver includes a 32-bit RISC microprocessor, a high-resolution magnetic encoder, the minimal motion position error can be automatically corrected , high precision and accuracy of measurement results can be guaranteed. Angular reproducibility cab reach 0.0001 degrees, smaller step angles up to 0.0001 degrees.
The angle goniometer with hollow shaft structure has the national invention patent.
Powder X-ray diffractometer goniometer
Electronic lead door interlock device, double protection, shutter window and lead door linkage, lead door open shutter automatic closure, to ensure the safety of users.
X-ray tube（glass tube, corrugated tube, cermet tube optional）
